.750 Tool Bore

Heavy Duty Tool Holder

This Internal Adjustable Rotary Broaching Tool Holder is built for speed and designed specifically for producing large forms. Its large bearing capacity helps achieve great results with larger forms, deeper depths and harder materials.
  • request a quote
  • Heavy Duty Tool Holder
    .750 Tool Bore

  • Broaching Capacity .625-1.125
  • Order: Refer to individual order numbers below

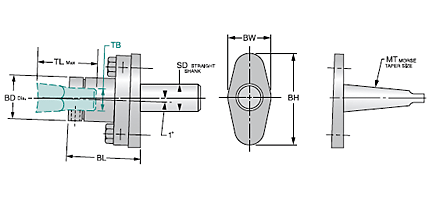

.750 Tool Bore .750 Tool Bore Mechanical Image
TB TL BD BL BW BH Shank Dia. (in)
Order #
.750 3.62 2.62 3.22 2.62 4.38 1.00 7760-1
.750 3.62 2.62 3.22 2.62 4.38 1.25 7760-2
.750 3.62 2.62 3.22 2.62 4.38 1.50 7760-3
.750 3.62 2.62 3.22 2.62 4.38 1.75 7760-4
.750 3.62 2.62 3.22 2.62 4.38 2.00 7760-5



TB TL BD BL BW BH Morse Taper (MT)
Order #
.750 3.62 2.62 3.22 2.62 4.38 #3 7760-53
.750 3.62 2.62 3.22 2.62 4.38 #4 7760-54
.750 3.62 2.62 3.22 2.62 4.38 #5 7760-55





  • Designed for larger machines where clearance is not an issue
  • Recommended for rotary broaching large forms and harder materials
  • Conveniently offered in different shank sizes for ease of adapting to different machines
  • Offered in both straight shank and morse taper
  • Compatible with Slater Tools' .750 shank diameter rotary broaches
  • Accepts rotary broaches with any custom overall length
  • Recommended Average Rotary Broaching Capacity: .625-1.125

Since this Rotary Broach Tool Holder is capable of being adjusted, it will need to be zeroed into the centerline of the workpiece. It is recommended to zero the Rotary Broach Tool Holder within .001 of the centerline or better.

End play of the Rotary Broach Tool Holder is typically .002/.003.

Use only synthetic grease (without graphite) with this Rotary Broach Tool Holder. Mobil 32 is an excellent grease that will prolong the life of your Rotary Broach Tool Holder, which is available from Slater Tools.

Replacement parts for each of our Rotary Broach Tool Holders are available from stock. Please call one of our helpful representatives for assistance.
