.315 Shank Diameter

Hex (Hexagon) Broaches

Slater Tools offers the largest inventory of stocked Hexagon Rotary Broaches. The below listed sizes are available for immediate delivery in a variety of materials and coatings. Additional sizes are also available from stock. Across the flats dimensions conform to IFI and ANSI/ASME standards for maximum tool life. With over 60 years of experience and our refined manufacturing process, we are able to produce any custom size or other special Hexagon Rotary Broach in only 1-2 days. Vent holes, quantity discounts and broach re-sharpening are available.
  • request a quote
  • Hex (Hexagon) Broaches
    .315 Shank Diameter

  • 1.25 Overall Length
  • Order: See stocked order numbers below/ call for any special size

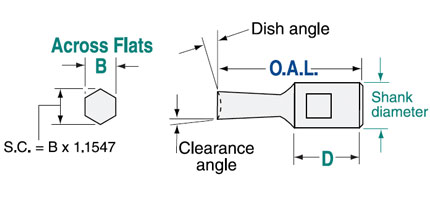

.315 Shank Diameter .315 Shank Diameter Mechanical Image

Inch

Nominal Size (in)
B D Order #
.050" Hex Broach .051 .81 306-051
1/16" Hex Broach .064 .81 306-064
5/64" Hex Broach .079 .81 306-079
3/32" Hex Broach .095 .81 306-095
7/64" Hex Broach .111 .75 306-111
1/8" Hex Broach .127 .75 306-127
9/64" Hex Broach .142 .75 306-142
5/32" Hex Broach .159 .75 306-159
11/64" Hex Broach .174 .75 306-174
3/16" Hex Broach .190 .75 306-190
7/32" Hex Broach .222 .62 306-222
1/4" Hex Broach .253 .62 306-253
9/32" Hex Broach .284 .62 306-284
5/16" Hex Broach .316 .62 306-316
11/32" Hex Broach .347 .62 306-347
3/8" Hex Broach .379 .62 306-379
13/32" Hex Broach .410 .62 306-410


Metric

Nominal Size (mm)
B D Order #
1.25mm Hex Broach .051 .81 306-051
1.50mm Hex Broach .061 .81 306-061
2mm Hex Broach .081 .81 306-081
2.50mm Hex Broach .101 .81 306-101
3mm Hex Broach .121 .75 306-121
4mm Hex Broach .161 .75 306-161
5mm Hex Broach .200 .75 306-200
6mm Hex Broach .240 .62 306-240
7mm Hex Broach .279 .62 306-279
8mm Hex Broach .320 .62 306-320
9mm Hex Broach .358 .62 306-358
10mm Hex Broach .399 .62 306-399
11mm Hex Broach .437 .62 306-437
12mm Hex Broach .478 .62 306-478



  • Available Coatings: TiN, TiCN, TiAN
  • Available Materials: M2 Tool Steel, PM4 HSS, T15
  • Custom Overall Lengths Available (including 28mm)
  • Custom Cut Lengths Available
  • Special across-the-flat dimensions: .028-1.5"
  • MICRO forms
  • Corner radius
  • Spun Ground Diameter on Broach Corners
  • Single or Double Vent Holes
  • Flat on shank can be aligned with flat on form (for holding orientation)
  • Resharpening Offered
  • Quantity Discounts at 5, 10, 30, 50, 100, 150, 200
