.500 Shank Diameter

Hex (Hexagon) Broaches

Slater Tools offers the largest inventory of stocked Hexagon Rotary Broaches. The below listed sizes are available for immediate delivery in a variety of materials and coatings. Additional sizes are also available from stock. Across the flats dimensions conform to IFI and ANSI/ASME standards for maximum tool life. With over 60 years of experience and our refined manufacturing process, we are able to produce any custom size or other special Hexagon Rotary Broach in only 1-2 days. Vent holes, quantity discounts and broach re-sharpening are available.
  • request a quote
  • Hex (Hexagon) Broaches
    .500 Shank Diameter

  • 1.75 Overall Length
  • Order: See stocked order numbers below/ call for any special size

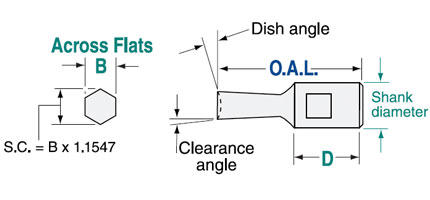

.500 Shank Diameter .500 Shank Diameter Mechanical Image

Inch

Nominal Size (in)
B D Order #
3/32" Hex Broach .095 1.00 506-095
7/64" Hex Broach .111 1.00 506-111
1/8" Hex Broach .127 1.00 506-127
9/64" Hex Broach .142 1.00 506-142
5/32" Hex Broach .159 1.00 506-159
3/16" Hex Broach .190 1.00 506-190
7/32" Hex Broach .222 .88 506-222
1/4" Hex Broach .253 .88 506-253
9/32" Hex Broach .284 .88 506-284
5/16" Hex Broach .316 .88 506-316
11/32" Hex Broach .347 .75 506-347
3/8" Hex Broach .379 .75 506-379
13/32" Hex Broach .410 .75 506-410
7/16" Hex Broach .442 .75 506-442
15/32" Hex Broach .473 .75 506-473
1/2" Hex Broach .505 .75 506-505
17/32" Hex Broach .536 .75 506-536
9/16" Hex Broach .568 .75 506-568
19/32" Hex Broach .599 .75 506-599
5/8" Hex Broach .631 .75 506-631
21/32" Hex Broach .662 .75 506-662
11/16" Hex Broach .694 .75 506-694
23/32" Hex Broach .725 .75 506-725
3/4" Hex Broach .757 .75 506-757


Metric

Nominal Size (mm)
B D Order #
2mm Hex Broach .081 1.00 506-081
2.5mm Hex Broach .101 1.00 506-101
3mm Hex Broach .121 1.00 506-121
4mm Hex Broach .161 1.00 506-161
5mm Hex Broach .200 .88 506-200
6mm Hex Broach .240 .88 506-240
7mm Hex Broach .279 .88 506-279
8mm Hex Broach .320 .88 506-320
9mm Hex Broach .358 .75 506-358
10mm Hex Broach .399 .75 506-399
11mm Hex Broach .437 .75 506-437
12mm Hex Broach .478 .75 506-478
13mm Hex Broach .517 .75 506-517
14mm Hex Broach .557 .75 506-557
15mm Hex Broach .597 .75 506-597
16mm Hex Broach .636 .75 506-636
17mm Hex Broach .678 .75 506-678
18mm Hex Broach .715 .75 506-715
19mm Hex Broach .758 .75 506-758
  • Available Coatings: TiN, TiCN, TiAN
  • Available Materials: M2 Tool Steel, PM4 HSS, T15
  • Custom Overall Lengths Available (including 28mm)
  • Custom Cut Lengths Available
  • Special across-the-flat dimensions: .028-1.5"
  • MICRO forms
  • Corner radius
  • Spun Ground Diameter on Broach Corners
  • Single or Double Vent Holes
  • Flat on shank can be aligned with flat on form (for holding orientation)
  • Resharpening Offered
  • Quantity Discounts at 5, 10, 30, 50, 100, 150, 200
