1.5748 Mounting Diameter

Heavy Duty Tool Holder

This Rotary Broaching Tool Holder is built for speed and designed to produce large external forms. Due to its size, this External Rotary Broaching Tool Holder is made for larger machines where clearance is not an issue.
  • request a quote
  • Heavy Duty Tool Holder
    1.5748 Mounting Diameter

  • Broaching Capacity .625-1.00
  • Order: Refer to individual order numbers below

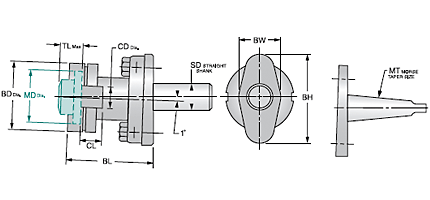

1.5748 Mounting Diameter 1.5748 Mounting Diameter Mechanical Image
MD TL BD BL BW BH CL CD Shank Dia. (in)
Order #
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 1.00" 7770-1
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 1.25" 7770-2
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 1.50" 7770-3
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 1.75" 7770-4
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 2.00" 7770-5



MD TL BD BL BW BH CL CD Morse Taper (MT)
Order #
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 #3 7770-53
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 #4 7770-54
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75 #5 7770-55



  • Designed for larger machines where clearance is not an issue
  • Recommended for rotary broaching large forms and harder materials
  • Compatible with Slater Tools' external rotary broaches with a 1.5748 mounting diameter
  • Conveniently offered in different shank sizes for ease of adapting to different machines
  • Offered in both straight shank and morse taper
  • Recommended Average Rotary Broaching Capacity: .625-1.00

Since this External Rotary Broach Tool Holder is capable of being adjusted, it will need to be zeroed into the centerline of the workpiece. It is recommended to zero the Rotary Broach Tool Holder within .001 of the centerline or better. Click here to watch a video on how to properly center your External Rotary Broach Tool Holder on your machine.

End play of the Rotary Broach Tool Holder is typically .002/.003.

Use only synthetic grease (without graphite) with this Rotary Broach Tool Holder. Mobil 32 is an excellent grease that will prolong the life of your Rotary Broach Tool Holder, which is available from Slater Tools.

Replacement parts for each of our Rotary Broach Tool Holders are available from stock. Please call one of our helpful representatives for assistance.
