.9448 Mounting Diameter

Swiss Type Tool Holder

This External Rotary Broaching Tool Holder is designed specifically for Swiss and other small machines. It is our smallest external broach tool holder and is ideal for broaching smaller external/OD forms.
  • request a quote
  • Swiss Type Tool Holder
    .9448 Mounting Diameter

  • Broaching Capacity .125-.250
  • Order: Refer to individual order numbers below

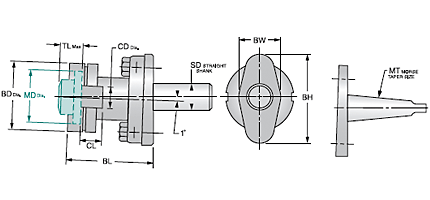

.9448 Mounting Diameter .9448 Mounting Diameter Mechanical Image



Straight Shank

MD TL BD BL BW BH CL CD Shank Dia. (in)
Order #
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 .625" 7700-1
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 .750" 7700-2
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 12mm 7700-12
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 16mm 7700-16



Morse Taper

MD TL BD BL BW BH CL CD Morse Taper (MT)
Order #
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 #1 7700-51
.9448 1.00 1.62 2.16 1.12 2.28 .56 .31 #2 7700-52
  • Designed for Swiss and other small machines where clearance for the Rotary Broach Tool Holder is minimal
  • Recommended for rotary broaching small forms and shallow depths
  • Compatible with Slater Tools' external rotary broaches with a .9448 mounting diameter
  • Conveniently offered in different shank sizes for ease of adapting to different machines
  • Offered in both straight shank and morse taper
  • Recommended Average Rotary Broaching Capacity: .125-.250



Since this External Rotary Broach Tool Holder is capable of being adjusted, it will need to be zeroed into the centerline of the workpiece. It is recommended to zero the Rotary Broach Tool Holder within .001 of the centerline or better. Click here to watch a video on how to properly center your External Rotary Broach Tool Holder on your machine.

End play of the Rotary Broach Tool Holder is typically .002/.003.

Use only synthetic grease (without graphite) with this Rotary Broach Tool Holder. Mobil 32 is an excellent grease that will prolong the life of your Rotary Broach Tool Holder, which is available from Slater Tools.

Replacement parts for each of our Rotary Broach Tool Holders are available from stock. Please call one of our helpful representatives for assistance.
