.500 Tool Bore

Large Swiss Type Tool Holder

This Rotary Broaching Tool Holder is designed for Swiss and other small machines that need to produce larger forms. Its small profile allows for it to be used on machines where clearance is a consideration and a larger broaching capacity is desired. This broach holder can, however, be used on larger machines as well.
  • request a quote
  • Large Swiss Type Tool Holder
    .500 Tool Bore

  • Broaching Capacity .050-.500
  • Order: Refer to individual order numbers below

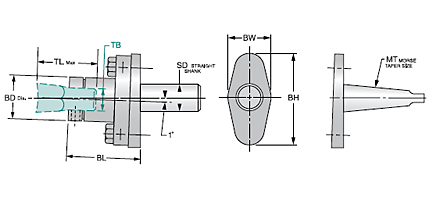

.500 Tool Bore .500 Tool Bore Mechanical Image

Straight Shank

TB TL BD BL BW BH Shank Dia. (in)
Order #
.500 1.75 1.19 2.16 1.25 2.56 .625" 1760-1
.500 1.75 1.19 2.16 1.25 2.56 .750" 1760-2
.500 1.75 1.19 2.16 1.25 2.56 16mm 1760-16



 Morse Taper

TB TL BD BL BW BH Morse Taper (MT)
Order #
.500 1.75 1.19 2.16 1.25 2.56 #1 1760-51
.500 1.75 1.19 2.16 1.25 2.56 #2 1760-52
  • Designed for Swiss and other small machines
  • Recommended for broaching small to medium-sized forms
  • Conveniently offered in different shank sizes for ease of adapting to different machines
  • Offered in both straight shank and morse taper
  • Compatible with Slater Tools' .500 shank diameter rotary broaches
  • Accepts rotary broaches with any custom overall length
  • Recommended Average Rotary Broaching Capacity: .050-.500

Since this Rotary Broach Tool Holder is capable of being adjusted, it will need to be zeroed into the centerline of the workpiece. It is recommended to zero the Rotary Broach Tool Holder within .001 of the centerline or better.

End play of the Rotary Broach Tool Holder is typically .002/.003.

Use only synthetic grease (without graphite) with this Rotary Broach Tool Holder. Mobil 32 is an excellent grease that will prolong the life of your Rotary Broach Tool Holder, which is available from Slater Tools.

Replacement parts for each of our Rotary Broach Tool Holders are available from stock. Please call one of our helpful representatives for assistance.
