.500 Tool Bore

Standard Type Tool Holder

This Rotary Broaching Tool Holder is our most popular Tool Holder due to its ability to produce a wide range of form sizes. From very small forms to larger and more difficult applications, this tool holder allows for maximum flexibility.
  • request a quote
  • Standard Type Tool Holder
    .500 Tool Bore

  • Broaching Capacity .050-.750
  • Order: Refer to individual order numbers below

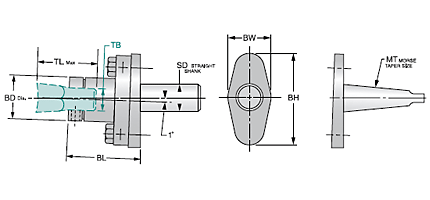

.500 Tool Bore .500 Tool Bore Mechanical Image
TB TL BD BL BW BH Shank Dia. (in)
Order #
.500 2.25 1.44 2.31 1.50 3.25 .750" 3760-1
.500 2.25 1.44 2.31 1.50 3.25 1.00 3760-2
.500 2.25 1.44 2.31 1.50 3.25 1.25 3760-3
.500 2.25 1.44 2.31 1.50 3.25 1.50 3760-4
.500 2.25 1.44 2.31 1.50 3.25 22mm 3760-22
.500 2.25 1.44 2.31 1.50 3.25 25mm 3760-25



TB TL BD BL BW BH Morse Taper (MT)
Order #
.500 2.25 1.44 2.31 1.50 3.25 #2 3760-52
.500 2.25 1.44 2.31 1.50 3.25 #3 3760-53
.500 2.25 1.44 2.31 1.50 3.25 #4 3760-54





  • Slater Tools' most popular Rotary Broach Tool Holder
  • Fits most CNC turning, drilling, milling and screw machines
  • Recommended for rotary broaching any size form, depending on application
  • Conveniently offered in different shank sizes for ease of adapting to different machines
  • Offered in both straight shank and morse taper
  • Compatible with Slater Tools' .500 shank diameter rotary broaches
  • Accepts rotary broaches with any custom overall length
  • Recommended Average Rotary Broaching Capacity: .050-.750

Since this Rotary Broach Tool Holder is capable of being adjusted, it will need to be zeroed into the centerline of the workpiece. It is recommended to zero the Rotary Broach Tool Holder within .001 of the centerline or better.

End play of the Rotary Broach Tool Holder is typically .002/.003.

Use only synthetic grease (without graphite) with this Rotary Broach Tool Holder. Mobil 32 is an excellent grease that will prolong the life of your Rotary Broach Tool Holder, which is available from Slater Tools.

Replacement parts for each of our Rotary Broach Tool Holders are available from stock. Please call one of our helpful representatives for assistance.
